Ironhide
Autonomous Forklift
High ROI Solutions
Low Investment/Quick Payback
Labor Cost Reduction
24/7 Autonomous Operations
Replace at least 3 employees
Zero-Downtime Navigation
Dual 3D Cameras & LiDAR
Prevent 99.6% Collisions
Centralized Fleet Optimization
Real-Time Fleet Analytics
Boost at least 30% Utilization
Advanced Features
Engineered for performance, built for reliability. Ironhide combines cutting-edge technology with robust industrial design.

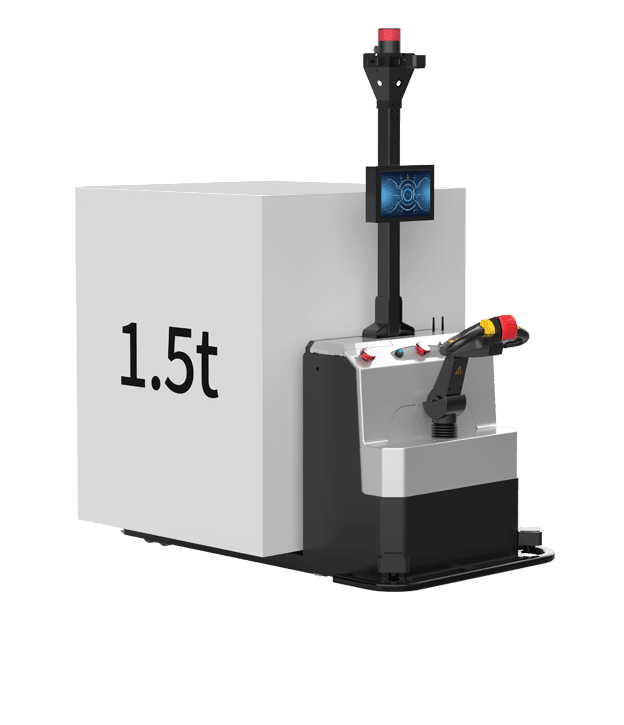

1.5T Large Load Capacity
Maximum load capacity of 1.5 tonnes with a 12cm lift of the load. Engineered for heavy-duty industrial applications, Ironhide handles substantial material transport with ease and precision.
Laser SLAM Navigation
Laser navigation, no coding required. Simple and easy deployment of robotic forklifts.
Intelligent Obstacle Avoidance
3D cameras + laser radar for active avoidance and safer operation.
Battery Removable
LiFePO4 battery with pull-out disassembly design for quick battery replacement and longer working time.
40,000㎡ Navigational Mapping
60m single line LiDAR, 1.6m narrow lane access, meets the needs of large area and complex environment usage. Maps expansive warehouse environments with precision accuracy.
Autonomous Dispatch System
Achieve unified internal deployment of robot forklifts for efficient distribution.
Reeman Ironhide Autonomous Forklift offers a highly cost-effective solution for modern material handling automation and industrial automation needs. Designed with robust engineering and efficient self-driving forklift technology, Ironhide provides reliable, high-performance operations in warehouses and manufacturing environments, making it an ideal choice for businesses seeking affordable automated warehouse solutions without compromising on quality.
As a driverless forklift and automated guided vehicle (AGV), Ironhide is equipped with intelligent sensors and navigation systems that ensure precision in logistics automation and warehouse robotics. Its flexibility and ease of integration allow for seamless deployment, making it perfect for organizations aiming to scale up their smart warehouse technology with minimal maintenance and lower costs.
Choose Reeman's Ironhide for a balance of high performance and cost-effectiveness. Whether enhancing unmanned forklift capabilities or optimizing intelligent logistics systems, Ironhide stands out as a top-tier solution in autonomous forklift technology, bringing significant value and efficiency to any industrial setting.
Product Parameters
| Rated load | 1500KG |
| Load center distance | 600mm |
| Vehicle weight (battery included) | 380KG |
| Body size | 1715mm(L)x940mm(W)x2080mm(H) |
| Fork size | 1150mm/182mm/55mm |
| Fork outside distance | 685mm |
| Lifting height | 120mm |
| Minimum height of fork surface from ground | 84cm |
| Body ground clearance | 50mm |
| Wheelbase | 1115mm |
| Turning radius | 1350mm |
| Tire type (Carrying wheel/driving wheel/auxiliary wheel) | Organosilicon |
| Tire size, load wheel | 82mmx96mm |
| Tire size, drive wheel | 230mmx75mm |
| Tire size, training wheels | 100mmx40mm |
| Number of wheels (Carrying wheel/driving wheel/auxiliary wheel) | 4/1x+2 |
| Wheel base, drive side | 518mm |
| Wheel base, load-bearing side | 515mm |
| Right angle stacking channel width (Pallet 1000×1200) 1200 across fork direction | 2176mm |
| Right angle stacking channel width (Pallet 800×1200) 1200 along the direction of the fork | 2103mm |
| Travel speed, full/empty | 0.8m/s, 1m/s |
| Lifting speed, full/empty | 40mm/s, 40mm/s |
| Descending speed, full/empty | 70mm/s, 60mm/s |
| Maximum climbing ability Full/Empty | 5%, 10% |
| Braking method | Electromagnetic |
| Drive motor power | 0.9Kw |
| Lifting motor power | 0.8Kw |
| Steering motor power | 0.4Kw |
| Lithium battery voltage | 48V |
| Lithium battery capacity | 28Ah |
| Manual operation mode | Handle |
| Multi-line lidar (16)*1 | 150m |
| Single-line laser obstacle avoidance radar*2 | 25m |
| Industrial grade pallet image recognition (IP65)*1 | 8m |
| Industrial grade 3D obstacle avoidance (IP65)*3 (tip detection*2, forward obstacle avoidance*1) | 6m |
| High-precision nine-axis flight attitude | 1Pcs |
| HD touch display integrated screen size | 10.1 inches |
